Threadlocker  Key Properties

Anaerobic Thread Locker Adhesives






Tested per MIL-S-46163 or ASTM D5363
SAF-T-LOK Product S90 T22 T41 T42 T43 T62 T70 T72 T77
Color   Threadlocker Green Purple dot Threadlocker Blue Threadlocker Blue Threadlocker Blue Threadlocker Red Threadlocker Red Threadlocker Red Threadlocker Red
Viscosity (cps) 20 1200* 125 1800* 5000* 2000* 500 8000 7000
Gap Filling (in. max.) .004 .005 .003 .006 .020 .008 .008 .010 .010
Torque Strength (in. lb.)
3/8-16 Steel Cleaned
Breakaway
Prevailing		 100
200		 50
30		 150
75		 150
50		 150
50		 200
110		 300
285		 245
200		 265
200
Cure Time with Primer T
Fixture (min.)
Cure (hr.)		 5
1		 5
1		 5
1		 5
1		 5
1		 5
1		 5
2		 5
2		 5
2
Cure Time without Primer
Fixture (min.)
Cure (hr.)		 10
2		 30
6		 30
24		 5
4		 5
4		 20
8		 60
8		 60
24		 60
24
Locking Shear (PSI) 1500 600 1500 1200 1200 2500 3500 2500 2500
Temperature Limit (ºF) 350 350 400 350 350 350 350 450 350
* Thixotropic
For more information on Anaerobic Threadlocker Adhesives, see Technical Data Sheets / Material Safety Data Sheets.



T22 Purple dot - Threadlocker Purple
FACTORS AFFECTING CURE RATE AND STRENGTH
 Click here for full size Graph PDF Icon


  Graph I: Rate of cure on Grade 5 Steel 3/8 x 16 UNC Fasteners Graph IV: Rate of cure on vs. oily ''as received'' steel fasteners
  T22 Graphs T22 Graphs
  Graph II: Rate of cure on Cadmium plated 3/8 x 16 UNC Fasteners Graph V: Rate of cure at various temperatures
  T22 Graphs T22 Graphs
  Graph III: Rate of cure on Zinc plated 3/8 x 16 UNC Fasteners  Graph V!: Percent of reported strength vs. fastener diameter
  T22 Graphs  T22 Graphs

  T62 Threadlocker Red - Threadlocker Red
FACTORS AFFECTING CURE RATE AND STRENGTH
 Click here for full size Graph PDF Icon

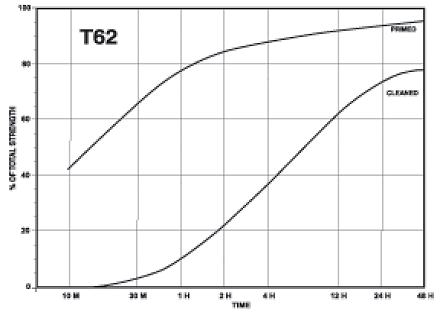

  Graph I: Rate of cure on Grade 5 Steel 3/8 x 16 UNC Fasteners  Graph IV: Rate of cure on vs. oily ''as received'' steel fasteners
  T62 Graphs  T62 Graphs
  Graph II: Rate of cure on Cadmium plated 3/8 x 16 UNC Fasteners  Graph V: Rate of cure at various temperatures
  T62 Graphs  T62 Graphs
  Graph III: Rate of cure on Zinc plated 3/8 x 16 UNC Fasteners  Graph V!: Percent of reported strength vs. fastener diameter
  T62 Graphs  T62 Graphs

  T77 Threadlocker Red - Threadlocker Red
FACTORS AFFECTING CURE RATE AND STRENGTH
 Click here for full size Graph PDF Icon


Graph I: Rate of cure on Grade 5 Steel 3/8 x 16 UNC Fasteners Graph IV: Rate of cure on vs. oily ''as received'' steel fasteners
T77 Graphs T77 Graphs
Graph II: Rate of cure on Cadmium plated 3/8 x 16 UNC Fasteners Graph V: Rate of cure at various temperatures
T77 Graphs T77 Graphs
  Graph III: Rate of cure on Zinc plated 3/8 x 16 UNC Fasteners  Graph V!: Percent of reported strength vs. fastener diameter
  T77 Graphs  T77 Graphs



        Application Methods for Threadlockers, Threadsealants, Penetrating and Porosity Sealants
Application Method for Threadlocking and Threadsealing Application Method to Test Threaded Fasteners Application Method for Stud Threadlocking Application Method for Pre-Assembled Threaded Joints Application Method for Sealing Threaded Joints Application Method for Porosity Sealing
