Threadlocker
Anaerobic Adhesive Thread Lockers
|
|
| |
See Also
Threadlocker Grade |
Retainer |
Thread Sealant |
Pipe Sealant
|
|
| |
Developed from the latest technology, SAF-T-LOK®
Threadlocker adhesives are designed to provide performance
characteristics that others only talk about. SAF-T-LOK has been the
primary supplier of thread lockers to the space program and the US
Military as well as leading edge industries.
SAF-T-LOK® Anaerobic Adhesives/Sealants
reliably lock and seal metal assemblies in a wide range of applications.
Anaerobic thread lockers cure to a tough resilient plastic shim in the absence
of air and presence of metal. By safely holding components they
eliminate loosening and costly breakdowns and damage to equipment from
vibration and shock, thus providing a SAF-T factor in engineering
design.
SAF-T-LOK® Threadlocker Adhesives
are provided in a broad range of strengths and viscosities meeting
Military Specification MIL-S-46163 as well as ASTM D5363. Thread Locker adhesives can be applied manually from the ergonomically
designed bottles or through automatic
dispensing systems. Selection of
the correct grade will:-
-
Reduce product assembly cost
-
Prevent part loosening
-
Eliminate fluid leakage
-
Assure removability
-
Improve product reliability |
 |
|
 |
|
| |
|
|
| |
|
Application Methods for Threadlockers, Threadsealants,
Penetrating and Porosity Sealants |
 |
|
|
|
|
|
| |
|
|
| |
T22
Threadlocker Purple
Low Strength/Adjustable Thread Locker
- Does not migrate on parts.
- Holds small nuts and screws.
- Seals medium size threaded parts.
- Remove with normal tools.
- Holds torque tension specs.
- Low strength for longer threads.
- Allows screw adjustment
T70
Threadlocker Red
High Strength/Permanent Thread Locker
- Locks studs to 1/2" diameter.
- Very chemical resistant.
- Eliminates vibration loosening
- Only removable with heat.
- High break & prevailing strength.
- Seals against corrosion. |

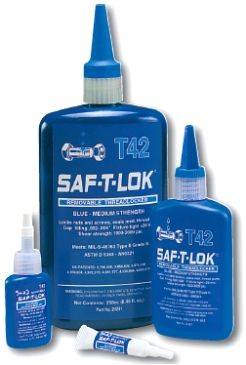

T42
Threadlocker Blue
Med. Strength/Removable Thread Locker
- Does not migrate on parts.
- Fast cure and oil tolerant
- Locks nuts and screws.
- Seals medium size threaded parts.
- Remove with normal tools.
- Holds torque tension specs.
- Prevents vibration loosening.
- Chemical resistant.
- Prevents keyway backlash.
T72
Threadlocker Red
High Temperature Thread Locker
- Locks studs, nuts and bolts.
- Does not migrate on parts.
- Remove with normal tools.
- Holds torque tension specs.
- Prevents vibration loosening.
- Chemical resistant. |
T62
Threadlocker Red
High Strength Thread Locker
- Locks studs, nuts and bolts.
- Does not migrate on parts.
- Fast cure and oil tolerant
- Remove with normal tools.
- Holds torque tension specs.
- Prevents vibration loosening.
- Chemical resistant.
T77
Threadlocker Red
High Strength/Thick Thread Locker
- Locks studs over 1/2" dia.
- Very chemical resistant.
- Eliminates vibration loosening.
- Only removable with heat.
- Seals against corrosion.
- Gasket sealant to .005". |
|
|
| |
|
|
| |
|
|
| |
Looking
for MIL-S-22473 Threadlockers?
See
more ASTM D5363 Threadlockers |
|
SAF-T-LOK
Product |
Part
Number |
Container
Size |
Technical
Data Sheet |
Material
Safety
Data Sheet |
National
Stock
Number |
Mil-S-46163 Classification |
ASTM D5363
Classification |
Properties |
S90
 |
29002
29021
29031
29041 |
1ml TUBE
10ml BOTTLE
50ml BOTTLE
250ml BOTTLE |
 |
 |
-----
NSN-8030-00-111-2763
NSN-8030-01-013-9307 ----- |
TYPE III
GRADE R
|
AN0261
|
MEDIUM STRENGTH
LOW VISCOSITY
THREADLOCKER |
T22
 |
22221
22231
22241 |
10ml BOTTLE
50ml BOTTLE
250ml BOTTLE |
 |
 |
NSN-8030-01-054-3968
NSN-8030-01-069-3046
NSN-8030-01-069-3047 |
TYPE II
GRADE M
|
AN0311
|
LOW STRENGTH
ADJUSTABLE
THIXOTROPIC
THREADLOCKER |
T41
 |
24121
24131
24141 |
10ml BOTTLE
50ml BOTTLE
250ml BOTTLE |
 |
 |
-----
NSN-8030-01-089-8129 ----- |
TYPE I
GRADE J
|
AN0231
|
MEDIUM STRENGTH
REMOVABLE
THREADLOCKER |
T42
 |
24202
24221
24231
24241 |
1ml TUBE
10ml BOTTLE
50ml BOTTLE
250ml BOTTLE |
 |
 |
-----
NSN-8030-01-104-5392
NSN-8030-01-014-5869
NSN-8030-01-025-1692 |
TYPE II
GRADE N
|
AN0321
|
MEDIUM STRENGTH
REMOVABLE
THIXOTROPIC
THREADLOCKER |
T43
 |
24331
24341 |
50ml BOTTLE
250ml BOTTLE |
 |
 |
-----
----- |
TYPE II
GRADE N
|
AN0321
|
MEDIUM STRENGTH
REMOVABLE
THIXOTROPIC
THREADLOCKER |
T62
 |
26221
26231
26241 |
10ml BOTTLE
50ml BOTTLE
250ml BOTTLE |
 |
 |
-----
NSN-8030-01-046-8902
NSN-8030-01-142-3131 |
TYPE II
GRADE O
|
AN0331
|
HIGH STRENGTH
THIXOTROPIC
THREADLOCKER |
T70
 |
27002
27021
27031
27041 |
1ml TUBE
10ml BOTTLE
50ml BOTTLE
250ml BOTTLE |
 |
 |
-----
NSN-8030-00-148-9833 ----- ----- |
TYPE I
GRADE K
|
AN0221
|
HIGH STRENGTH
PERMANENT
THREADLOCKER |
T72
 | 27231
27241 |
50ml BOTTLE
250ml BOTTLE |
 |
 |
-----
----- |
----- |
----- |
HIGH TEMPERATURE
THREADLOCKER |
T77
 |
27731
27741 |
50ml BOTTLE
250ml BOTTLE |
 |
 |
NSN-8030-01-063-7510 ----- |
TYPE I
GRADE L
|
AN0211
|
HIGH STRENGTH
PERMANENT
THREADLOCKER |
|
Key Properties and
Graphs for
Anaerobic Threadocker Adhesives.
|
|
|
| |
|
|
